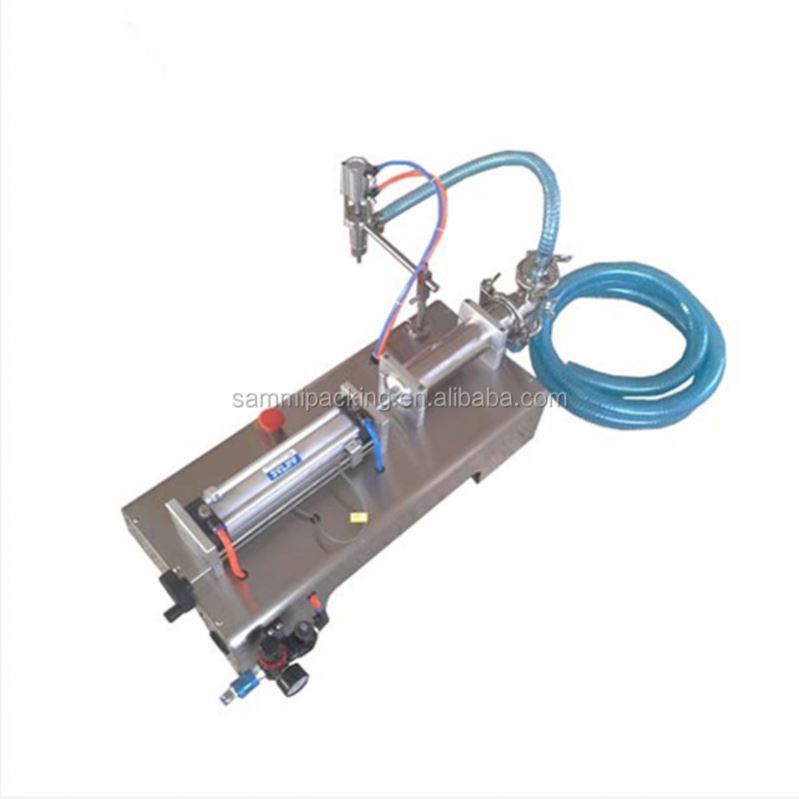

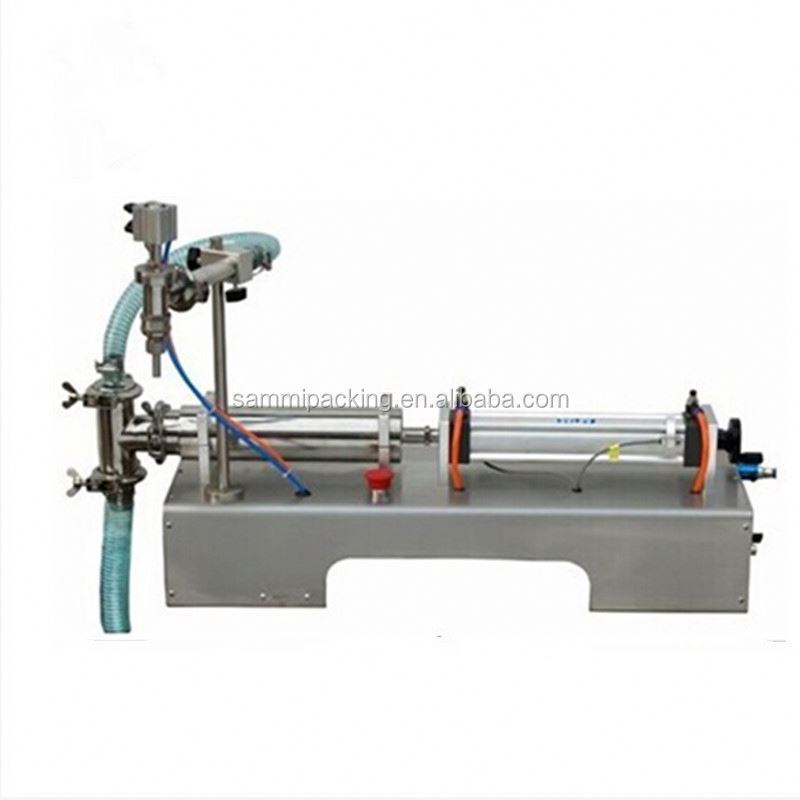

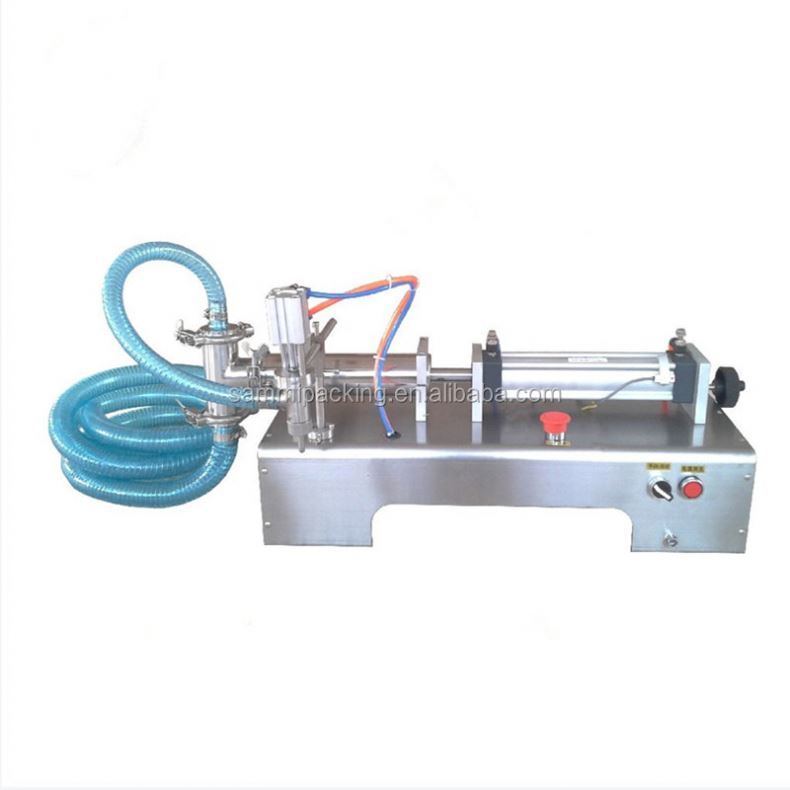

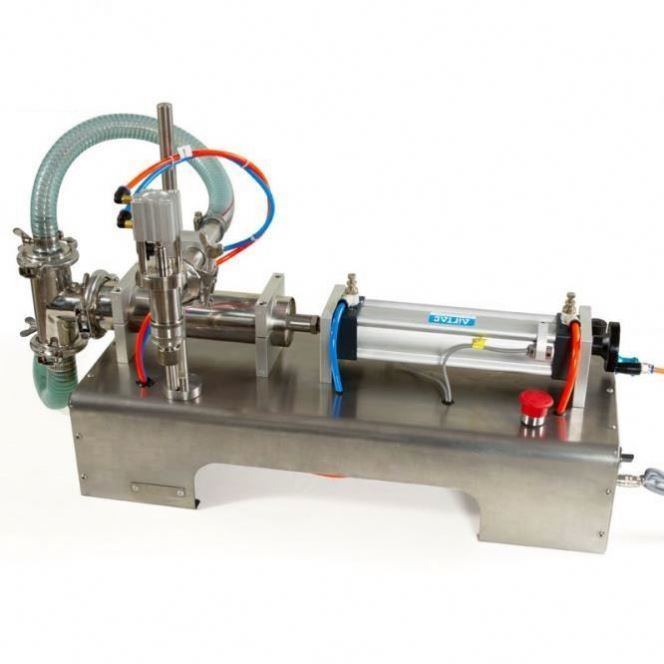

Pneumatic Semi Automatic Single Head Piston Filler/hot Liquid Filling Machine

semi automatic piston filler machine

hot liquid filling machine

pneumatic single head filler

Свяжитесь с нами

Запросите цитату

Pneumatic Semi Automatic Single Head Piston Filler/hot Liquid Filling Machine

Подробная информация о продукции

Производительность машины:

500 бутылок в час

применение:

饮料, 化学品, 食品

包装类型:

纸盒 бумажная коробка

Упаковочные материалы:

Дерево

Уровень автоматизации:

Полуавтоматический

动力类型:

气动

электрическое давление:

110В/220В

Производство:

Гуандун, Китай

Бренд:

Сэмми

Размер (длина x ширина x высота):

125*40*30 мм

Срок хранения:

1 год

核心卖点:

Продолжительность жизни

Наполнитель:

Вода, масло, сок

灌装 точность:

1, ≤ ± 1%

Отчет о механическом тестировании:

可提供

Видео выходной контроль:

可提供

Ядро компонента:

электрический

функция:

Заполнители

Заполнительные материалы:

жидкость

Диапазон заполнения:

50-500мл

Скорость наполнения:

10-40 бутылок/минуту

机器材料:

不?? сталь

Слишком много рюкзаков.:

1 рот

保修:

1 год

Минимальный заказ:

1台

应用程序:

医疗

Тип:

Машина для упаковки в сетку

状态:

Новый

适用行业:

维修店, 家用, 食品店, 餐饮店. 维修店, 家用, 食品店, 餐饮店. 维修店, 家用, 食品店, 餐饮店.

Местоположение выставочного зала (в каких зарубежных странах есть демонстрационные залы):

Нет

核心组件质保期:

1 год

Вес:

45 кг

Выделить:

semi automatic piston filler machine

hot liquid filling machine

pneumatic single head filler

Условия оплаты и доставки

Количество мин заказа

1 комплект

Цена

$225-288 / set

СОБЩЕННЫЕ ПРОДУКТЫ

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Лучшая цена

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Лучшая цена

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Лучшая цена

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Product Description

Principle:

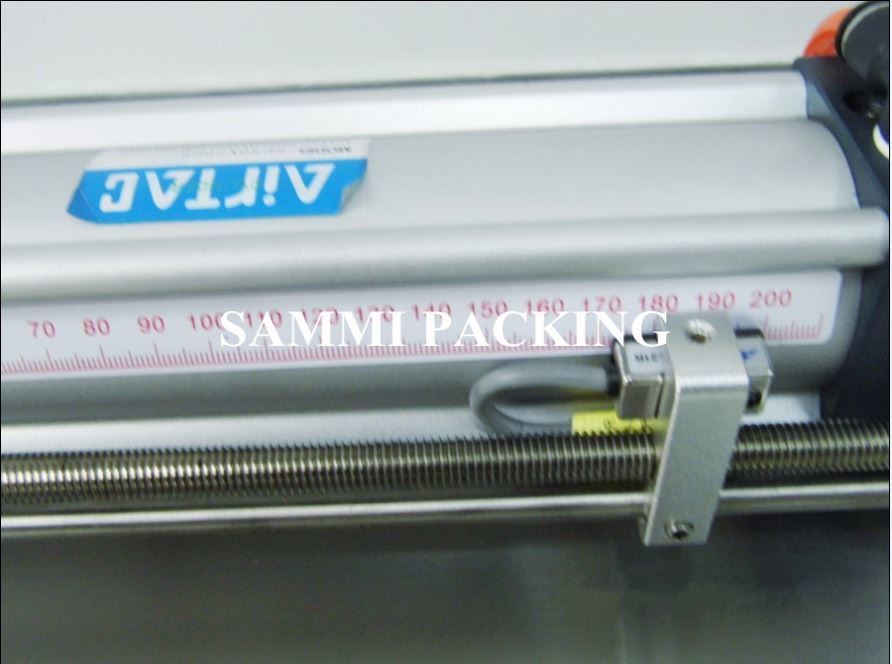

G1WY series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Characteristic:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-3000	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	1000-3000ml	1000-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement

Fill material samples:

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port

Our Services

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

4) File Services: We offer instruction manual and video to teach you how to using and testing machine.

5) Accessories: We supply spare parts with competitive price after warranty time.
