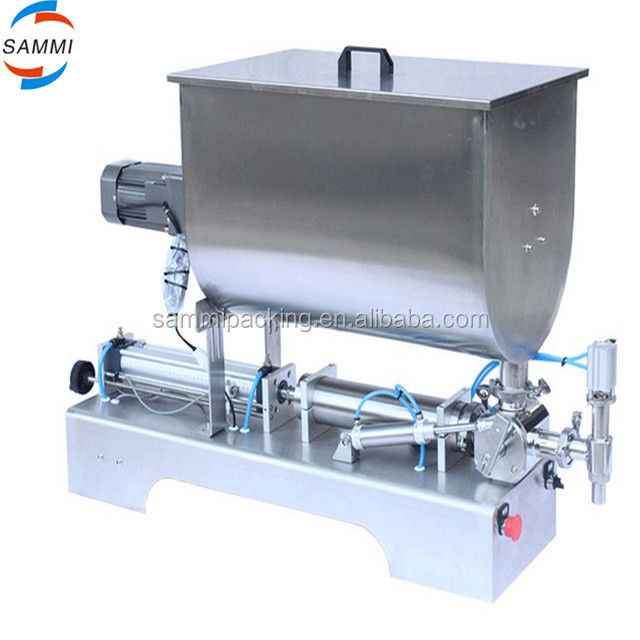

One Nozzle Big Valve Mixed Bean Sauce Filling Machine/ Piston Sauce Filler U Type Hopper

Подробная информация о продукции

Производительность машины:

4000 бутылок в час

применение:

Напитки

包装类型:

纸盒 бумажная коробка

Упаковочные материалы:

Дерево

Уровень автоматизации:

Полуавтоматический

动力类型:

气动

электрическое давление:

220 В

Производство:

Гуандун, Китай

Бренд:

Сэмми

Размер (длина x ширина x высота):

124*40 * 40CM, Контейнер: 120*48 * 50CM

Срок хранения:

1 год

核心卖点:

Простота в эксплуатации

Наполнитель:

牛奶, 水, сок

Отчет о механическом тестировании:

可提供

Видео выходной контроль:

可提供

Ядро компонента:

электрический

материалы:

不?? сталь

喷嘴:

Очень хорошо.

Местоположение локальной службы:

“无”

认证:

ISO-900

营销型:

Хиты продаж 2019

Тип:

Машина для упаковки в сетку

状态:

Новый

适用行业:

食品饮料加工厂, 餐饮店. продуктовый завод, ресторанный магазин.

Местоположение выставочного зала (в каких зарубежных странах есть демонстрационные залы):

Нет

核心组件质保期:

1 год

Вес:

1100 кг

Выделить:

piston sauce filling machine

mixed bean sauce filler

automatic sauce packaging machine

Условия оплаты и доставки

Количество мин заказа

1 комплект

Цена

$700-900 / set

СОБЩЕННЫЕ ПРОДУКТЫ

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Лучшая цена

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Лучшая цена

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Лучшая цена

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Features:

This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Technical Parameters:

Machine model	GFA-100	GFA-300	GFA-500	GFA-1000	GFA-3000	GFA-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request

Company Information

About Us

Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of

packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,labeling

machines, packing machines etc,widely apply in food,cosmetic, pharmacy, beverage and chemical industries.

With expertise and inside knowledge of packaging machinery, we provide our clients with additional value by

supplying top quality, high efficient packaging equipment base on competitive price.

Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries

in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices, fast speed

delivery and satisfying services.

Certificate

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port

Our Services

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

4) File Services: We offer instruction manual and video to teach you how to using and testing machine.

5) Accessories: We supply spare parts with competitive price after warranty time.
